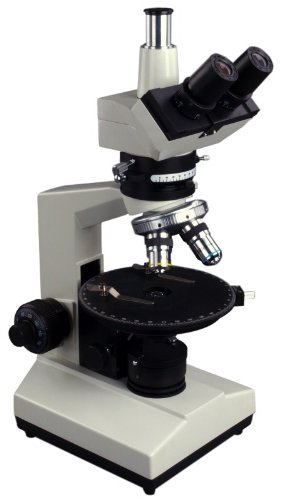

OMAX 40X-600X Professional Trinocular Polarizing Microscope description
User reviews for OMAX 40X-600X Professional Trinocular Polarizing Microscope -
OMAX 40X-600X Professional Trinocular Polarizing Microscope features
- Head: Trinocular 45 degrees inclined 360 degrees rotatable; Nosepieces: Quadruple; Eyepieces: a pair of wide field WF10X/18 (one with crosshair reticle); Objectives: Strain free achromatic, DIN 4x, 10x, 40x (spring), 60x (spring); Total magnification: 40x-100x-400x-600x; Condenser: NA1.25 Abbe Condenser with iris diaphragm and filter holder
- Stage: Rotatable, with 360 degrees angle graduations and a vernier scale, accurate to 0.1degrees; Diameter 160 mm; Analyzer: Removable, 0degrees;- 90degrees; graduation, with built in Bertrand lens (easy to slide in and out of the light path)
- Polarizer: mounted on the top of the illumination housing, easy to swing in and out of the light path; Compensators: quarter-wave plate (1/4 lambda plate),tint plate (1 lambda plate), and one quartz wedge
- Focus adjustment: Coaxial coarse and fine adjusting knobs on both sides; Camera port: Standard 23.2 mm; Illumination: Halogen Lamp, 6V/20W, brightness adjustable; Power supply: AC 100V-240V/60Hz (US and Canada)
- 5-year warranty against manufacturing defects
