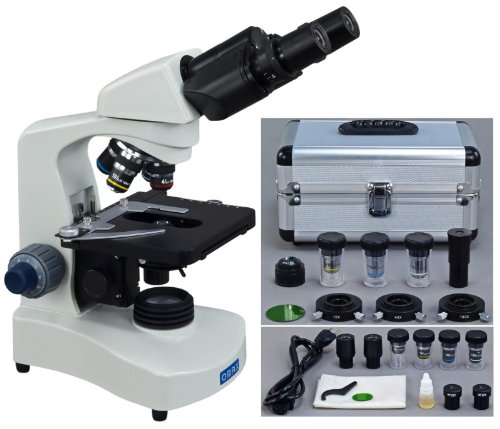

OMAX 40X-2000X LED Phase Contrast Binocular Compound Microscope with 30 Degree Siedentopf Viewing Head description
User reviews for OMAX 40X-2000X LED Phase Contrast Binocular Compound Microscope with 30 Degree Siedentopf Viewing Head -
OMAX 40X-2000X LED Phase Contrast Binocular Compound Microscope with 30 Degree Siedentopf Viewing Head features
- Eyepieces: wide field WF10X/18 and WF20X; Bright field of objectives: achromatic DIN 4X, 10X, 40X(Spring),100X(Spring,Oil); Phase contrast objectives (in phase contrast kit): Achromatic PH10X, PH40X(S), PH100X(S, Oil); Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X
- Head: 30 degrees inclined 360 degrees rotatable binocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, translation range 78mm x 40mm, dimension 110mm x 140mm; Focus: coaxial coarse and fine focus knobs on both side, rack and pinion adjustment, with tension control and stop
- Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and swing-out filter holder, rack and pinion adjustment
- hase contrast condenser with 3 built-in condenser annular plate: one bright field NA1.25 condenser, and three condenser annular plate - 10X, 40X, 100X, each can be centered; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
- 5-year warranty against manufacturing defects
OMAX 40X-2000X LED Phase Contrast Binocular Compound Microscope with 30 Degree Siedentopf Viewing Head best price
